Description

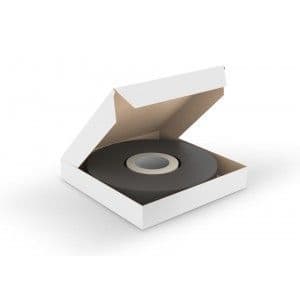

QuelCoil Continuous Intumescent Pipe Wrap - 25m roll - Outstanding Value!
Quick Overview
QuelCoil Continuous Intuwrap is a universal intumescent pipe wrap used to maintain the fire rating of walls where they have been penetrated by plastic pipes and/or metallic pipes with combustible insulation. It can be cut to length on site.
This amazing product can be used in both masonry walls and plasterboard partitions
Roll size - 50mm wide x 2mm thick x 25m long
Features & Benefits
- Up to 2 hour fire rating (EI120)
- Supplied in a 25m coil and cut to length on site
- No mechanical fixings required
- Suitable for use in flexible walls and rigid walls
- Suitable for PVC, HDPE and PP Pipes Suitable for plastic pipes up to 160mm diameter
- Suitable for use around metal pipes with insulation
- Suitable for use around pipe insulation up to 50mm thick
- Suitable for use in Fire Batts
- Performance unaffected by weathering (Type X Durability)
Regulations
- Tested to BS EN 1366-3:2009
- Classified According to EN 13501-2: 2007 + A1: 2009
- Type X Durability Testing
Under fire conditions, the QuelCoil Intuwrap expands and fills the void left by the burnt plastic / insulation.
For all insulated non-combustible pipes 2 layers of QuelCoil should be installed around the insulation (maximum insulation thickness is 50mm).
Plastic Pipe Diameter <500mm = 1 Layer Of Intu Pipe Wrap Req. - 50mmx2mm
Plastic Pipe Diameter @ 51-75mm = 2 Layers Of Intu Pipe Wrap Req. -50mmx2mm
Plastic Pipe Diameter @ 71-110mm = 3 Layers Of Intu Pipe Wrap Req. - 50mmx2mm
Plastic Pipe Diameter @ 111-160mm = 6 Layers Of Intu Pipe Wrap Req. = 50mmx2mm
